ADR130BUJZ-REEL7
Manufacturer:
Analog Devices
Mfr.Part #:
ADR130BUJZ-REEL7
Datasheet:
Description:

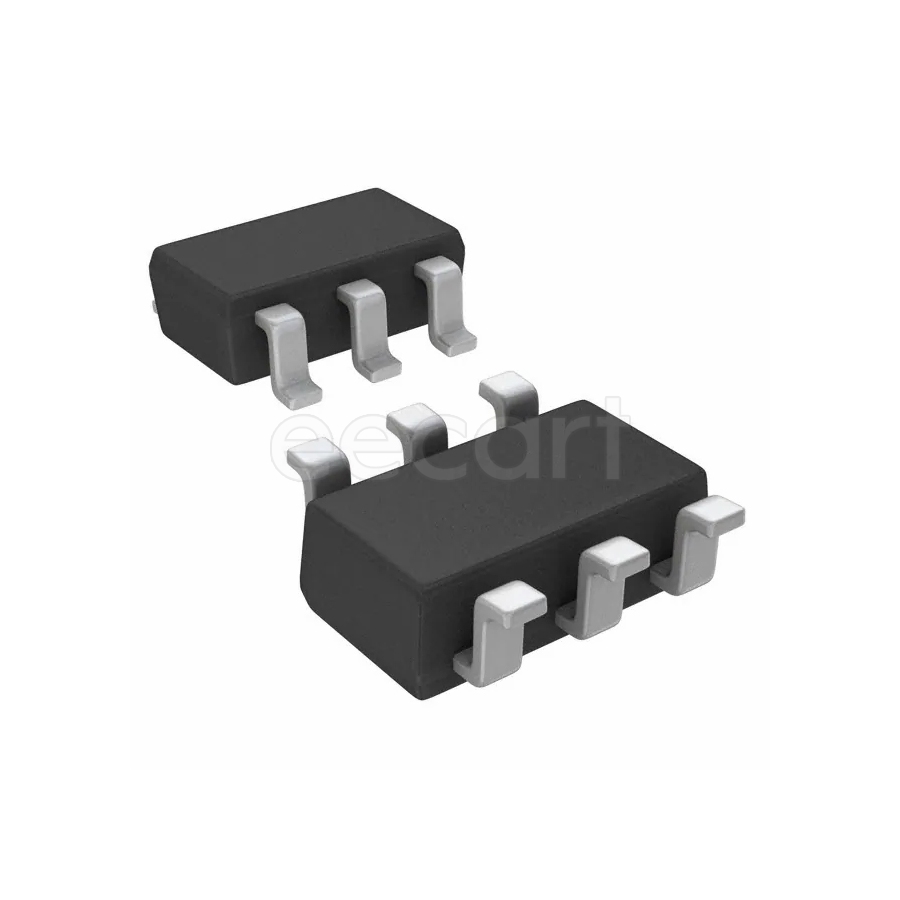

Voltage References TSOT-6 SMD/SMT Output Voltage:1 V 4 mA 0.35 % 5 ppm/°C
| Parameter | Value |
|---|---|
| Tolerance | 0.35 % |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Temperature Coefficient | 5 ppm/°C |
| Packaging | Reel |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Min Input Voltage | 2 V |
| Output Current | 4 mA |
| Output Voltage | 1 V |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Output Current | 4 mA |
| Operating Supply Current | 150 µA |
| Max Input Voltage | 20 V |
| Reference Type | Series |
| Min Output Voltage | 1 V |
| Reference Voltage | 500 mV |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 months ago) |
| Shunt Current | 4 mA |
| Initial Accuracy | 0.35 % |
| Output Type | Programmable |
| Max Supply Current | 150 µA |
Stock: 865
Distributors
pcbx
pcbxUnit Price$4.65542
Ext.Price$4.65542
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.65542 | $4.65542 |
| 10 | $3.95779 | $39.57790 |
| 25 | $3.66945 | $91.73625 |
| 50 | $3.40211 | $170.10550 |
| 100 | $3.15425 | $315.42500 |
| 300 | $3.05529 | $916.58700 |
| 500 | $2.95947 | $1479.73500 |
| 1000 | $2.87178 | $2871.78000 |
